Spinning Reel

Tesoro Spinning Reel

Spinning Reel

Tesoro Spinning Reel

MSRP$359.99 - $399.99

Brand: Okuma

Product Code: TSR-4000XA

Availability:In stock

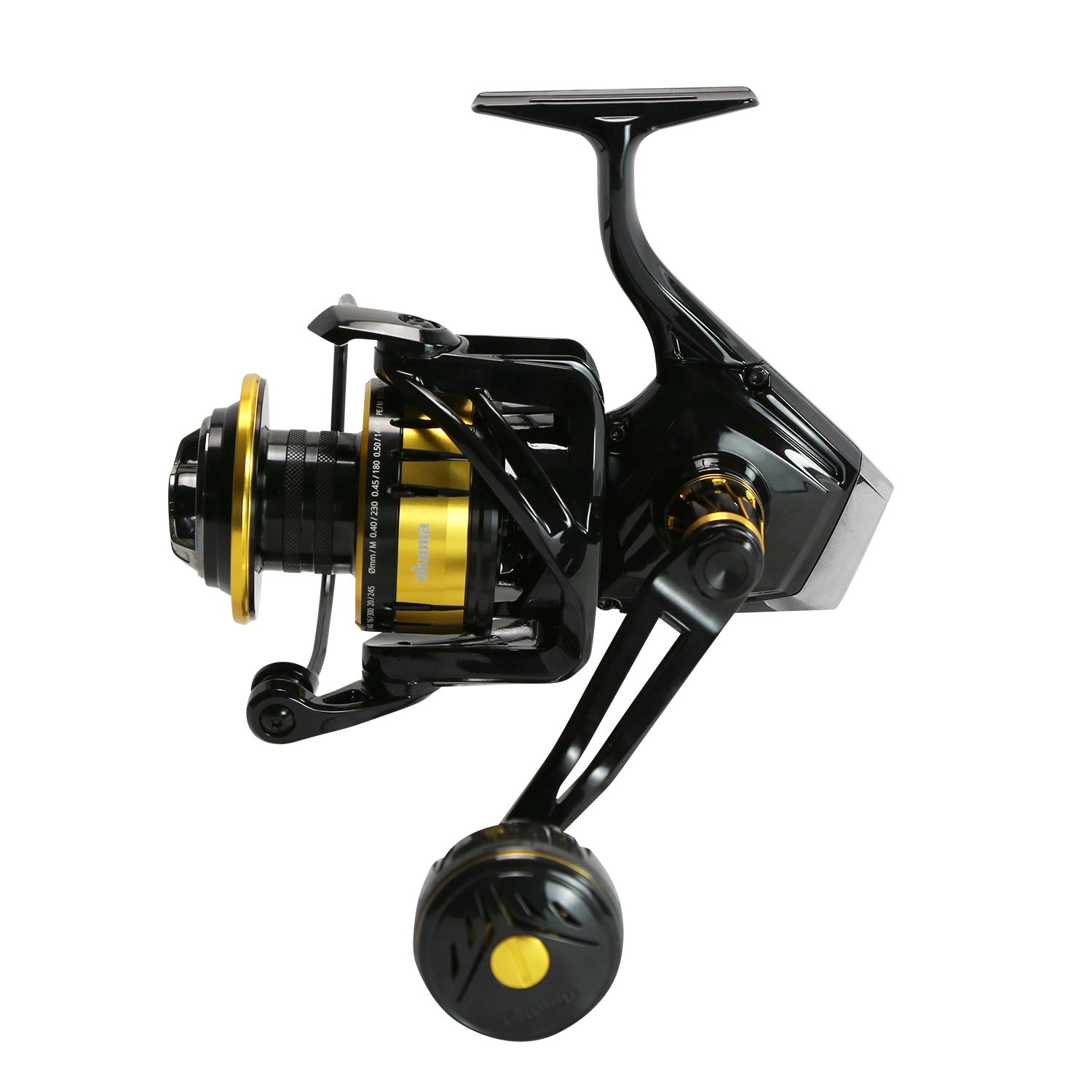

Okuma Tesoro Spinning Reels

With names like Makaira, Alijos, Cavalla, and Tesoro, Okuma has been a major player in the offshore game for quite some time. This year, Okuma releases the new Tesoro Spinning Reels to complement the Big Game Saltwater arsenal.

Okuma’s new Tesoro Spinning reels have been built from the bottom up. These reels are constructed with Okuma’s Alumilite body, side plate, and Cyclonic Flow Rotor construction for the ultimate in strength. With an IPX-7 full-body waterproof design, the Tesoro Spinning reels feature the ultimate in features and protection.

The Tesoro features a 12HPB + 1RB corrosion-resistant stainless-steel bearing drive as well as a carbonite high output DFD drag system with Cal’s drag grease that puts out over 55-pounds of pure fish stopping drag. The reel is built with a custom titanium spool shaft that reduces flex and weight as well as oversized brass main gear and C-6191 brass pinion gear that is double supported with ball bearings. The frictionless main shaft design provides smooth operation day in and day out. The dual anti-reverse system provides maximum strength and reliability. The rigid machined aluminum screw-in handle design provides direct feedback when turning the handle and locks solidly into place. A rotor brake system works in conjunction with the Tesoro’s manual bail trip design.

There are seen total models within the Tesoro Spinning reel lineup. A 4,000, 6,000, 8,000, 10,000, 14,000, 18,000 and 20,000 size. The 4,000 size features a 6.2"1 gear ratio and the 6,000 and 8,000 sizes feature high-speed gearing at 5.8:1 with retrieval of 49” of line per turn of the handle. The two larger sizes feature 4.4:1 gear ratio and pick up close to 42” of line per handle turn. All models have an interchangeable screw-in handle system that can be changed from left to right-hand retrieve.

*Not Available for Online Purchase

Check out the Tesoro Spinning Reels

Check out the Tesoro 4000 Size Spinning Reels

Take a Technical Look at the Tesoro Spinning Reels







Select Model Select Model California Prop 65 Warning

What is Proposition 65?

Proposition 65 is a California law that applies to companies selling products in California. Proposition 65 requires warnings if a product contains any listed chemical present above very low levels. Proposition 65’s warning standards are among the most stringent in the world. Proposition 65 is not a product safety law, but rather a "right-to-know" law. Businesses are required to provide warnings to comply with Proposition 65.

There are over 800 chemicals on the Proposition 65 list, which is administered by California's Office of Environmental Health Hazard Assessment (OEHHA), a part of the California Environmental Protection Agency. The list includes naturally occurring and man-made chemicals. Proposition 65 warnings can be seen for a wide variety of everyday consumer products, including electronic equipment, and warnings can be seen posted throughout California in a variety of establishments such as buildings, hotels, restaurants, coffee shops, and stores.

Why do you see the warning on our packaging and website?

The warning is part of our ongoing effort to comply with the California Safe Drinking Water and Toxic Enforcement Act of 1986 (known as "Proposition 65").

California Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

  • Alumilite body, sideplate and Cyclonic Flow rotor
  • IPX-7 full body waterproof design for ultimate protection
  • 12HPB + 1RB corrosion resistant stainless-steel bearings
  • Carbonite high output DFD drag with Cal’s drag grease
  • Specialized titanium spool shaft reduced flex and weight
  • Dual anti-reverse for maximum strength and reliability
  • Oversized brass main gear and C-6191 brass pinion gear
  • Even Flow Line Roller system with DLC coating
  • Rigid machined aluminum screw in handle design
  • Carbon fiber handle knob for comfort and weight reduction
  • Pinion gear: double supported with ball bearings
  • Frictionless main shaft design provides smooth operation
  • Machined aluminum screw in handle for maximum strength
  • Rotor brake system works in conjunction with manual bail trip
  • CRC: Corrosion Resistant Corrosion Coating process
  • Tesoro reels are backed by a 1-year limited warranty

Technology

Carbonite

Carbon Fiber Drag Washer

Flite Drive

The FLITE DRIVE gearing stabilization design features top, middle, and bottom support for the pinion gear, resulting in superior gear stability and durability.

IPX-7 Rating

Durable enough to survive after being submerged in up to up to 3 feet of water for 30 minutes.

Models

# MODEL BEARINGS BRAID LINE CAPACITY GEAR RATIO LINE CAPACITY LINE RETRIEVE MAX DRAG PRESSURE WEIGHT OZ PRICE
TSR-4000XA 12HPB+1RB 230/15,180/30 6.2:1 230/8, 200 /10, 160/12 39.8" 26-LBS 13.3 $359.99
TSR-6000XA 12HPB+1RB 290/30,195/50 6.2:1 265/12, 170/16, 120/20 41.3 33-LBS 15.8 $359.99 Find Dealer
TSR-8000HA 12 HPB + 1RB 500/40, 425/50 5.8:1 440/12, 300/16, 245/20 44.1" 55-LBS 24.6 $374.99 Find Dealer
TSR-10000HA 12 HPB + 1RB 500/50, 330/65 5.8:1 550/12, 375/16, 305/20 47.6" 55-LBS 25.2 $374.99 Find Dealer
TSR-14000HA 12 HPB + 1RB 450/65, 390/85 5.8:1 710/12, 480/16, 395/20 49.6" 55-LBS 25.5 $374.99 Find Dealer
TSR-18000PA 12 HPB + 1RB 460/65, 400/80 4.4:1 560/20, 445/25, 320/30 41.7" 55-LBS 32.7 $399.99 Find Dealer
TSR-20000PA 12 HPB + 1RB 490/65, 400/80  4.4:1 670/20, 530/25, 390/30 43.7" 55-LBS 32.7 $399.99 Find Dealer
